Woodworking Sawing Machine

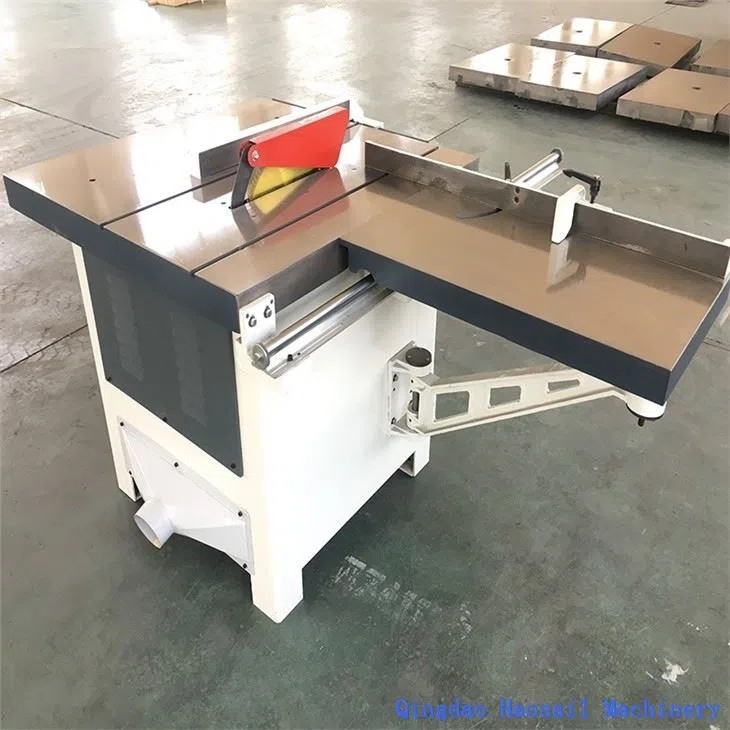

Woodworking Circular Saw With Sliding Table

The circular saw blade of woodworking circular saw is installed on the main shaft and driven by motor for rotary cutting motion. Wood can be fed manually or mechanically (roller, chain rail, conveyor belt and sports car, etc.) or by saw blade. Circular sawing machines can be divided into...

Description

03-

-_02

The circular saw blade of woodworking circular saw is installed on the main shaft and driven by motor for rotary cutting motion. Wood can be fed manually or mechanically (roller, chain rail, conveyor belt and sports car, etc.) or by saw blade. Circular sawing machines can be divided into longitudinal circular sawing machines, cross-section circular sawing machines and universal circular sawing machines (which can cut wood longitudinally, transversely and obliquely), which are widely used in wood making and joinery operations.


Our MJ243C type woodworking circular saw with sliding table has the following features:

1.Adopt large powerful pure copper motor.


2.Terminal box and relay adopt famous brand DELIXI.


3.Adopt alloy saw blade that long lifetime.


4.The lathe bed adopt heavy steel structure that ensure stability when working.


5.Heavy frame anodized carriage assembly with precision bearings prevents cutting distortion.


6.Angle drgree adjustable from 45°-90°.

-_04


Tech Parameter

Name

Woodworking circular saw with sliding table

Type

MJ243C

Diameter of spindle

30mm

Diameter of saw blade

Standard configuration is φ300mm(max install diameter reach to   350mm)

Max thickness of sawing

75mm

Max transverse width

700mm

Max ripping width

650mm

Saw blade angle of inclination

90°-45°

Fixed work bench size

900*880mm

Moving work bench size

700*400mm

Route of moving work bench size

1000mm

Work bench height

805mm

Spindle speed

3900rpm/min

Motor power

3.0kw

Net weight

460kg

Max overall size

1580*1340*1000mm



-_08

Haosail with experienced management team, average working experience is around 15 years.Also Haosail with brand store in Maputo of Mozambique, Dubai and Singapore, every branch implements localization management, in order to serve customers more better.

-_10

Why to choose Haosail?
1. Compared to the factory which can only provide single product, we can offer you one-stop purchasing, provide whole set of equipment and turnkey solution for your garage.
2. Compared to normal trading company, we have abroad sales stores and professional after-sale team. You don't need to worry about our company strength, equipment installation and maintenance problems.
3. Compared to normal sales company, we have our LOGO on all of our equipment, Uniform color, if you want to start your own business or act as a product agent, we are the best solution for your investment.



How about your service?
1. Consultation before, during, and after sales;
2. Project planning and design;
3. Provide local service for installation and operator training in Mozambique and Dubai. For other countries and areas, we will provide instruction documents and on line assistance.



 What about your leading time?
We have brand shops in Mozambique, Singapore and Dubai. After you place an order, we will finish production in 30 days. For big quantity, we can talk further.



 What about the transportation and delivery date?
Our machine needs to be loaded into container and ship by sea, it takes about 25-40 days. It also depends on which country and port you are.

-_11

Qingdao Haosail Machinery Co., Ltd., founded in 2008, is an integrated enterprise specilizing in the design, production, sales, and service of auto maintenance equipment. We not only sell products, but also provide project package services, including project layout design, one-stop purchasing, installation and training, have established cooperative relations with many demestic and foreign customers.
We have operations and experience centers in Africa, the Middle East, and Singapore that provide localized services.
Haosail's products are passed Third Party Inspection -JINGRUI TEST CENTER's quality management, which can achieve quality traceability and make customers feel at ease.
Our philosophy: Looking forward to the establishment of cooperation with customers, including product sales agent, project contract supporting. Haosail, your auto-repair partner from zero to success.

-_12
