Cast iron fine grinding table is equipped with double stripper roll

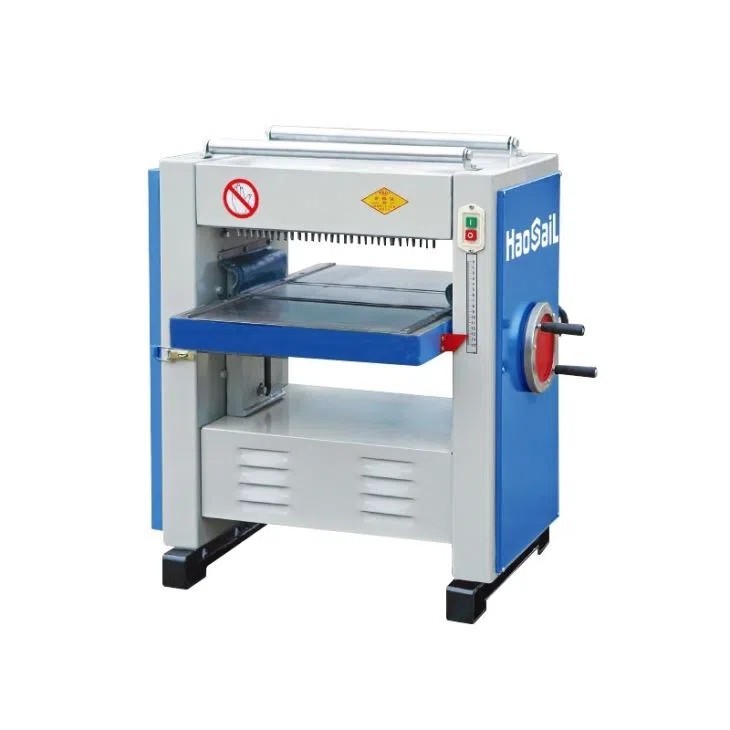

The thickenesser is also called as planing machine, it is a planing machine which is composed of a horizontally parallel rotary planer shaft and a pressing roller, a lifting surface and a feeding device. It is mainly used to cut the pressure on the workpiece.
Our Heavy duty woodworking thicknesser has the following characters:
1. The copper motor is powerful and durable
2. Cast iron fine grinding table is equipped with double stripper roll
3. Single in and single out structure, compact cutter shaft.
4. Low noise
Technical Specification
Motor Power | 3kW 380V 50Hz |
Max. producing width | 400mm |
Max. workpiece thickness | 150mm |
Max cutting depth | 3mm |
Min. workpiece length | 200mm |
Spindle speed | 5270rpm |
Overall dimensions | 725x650x850mm |
Package size | 670x750x930mm |
N.W/G.W | 155/170kg |
Motor Power | 3kW 380V 50Hz |
Max. producing width | 600mm |
Max. workpiece thickness | 200mm |
Max cutting depth | 4mm |
Min. workpiece length | 200mm |
Spindle speed | 5270rpm |
Overall dimensions | 930x650x970mm |
Package size | 950x670x1070mm |
N.W/G.W | 215/230kg |
