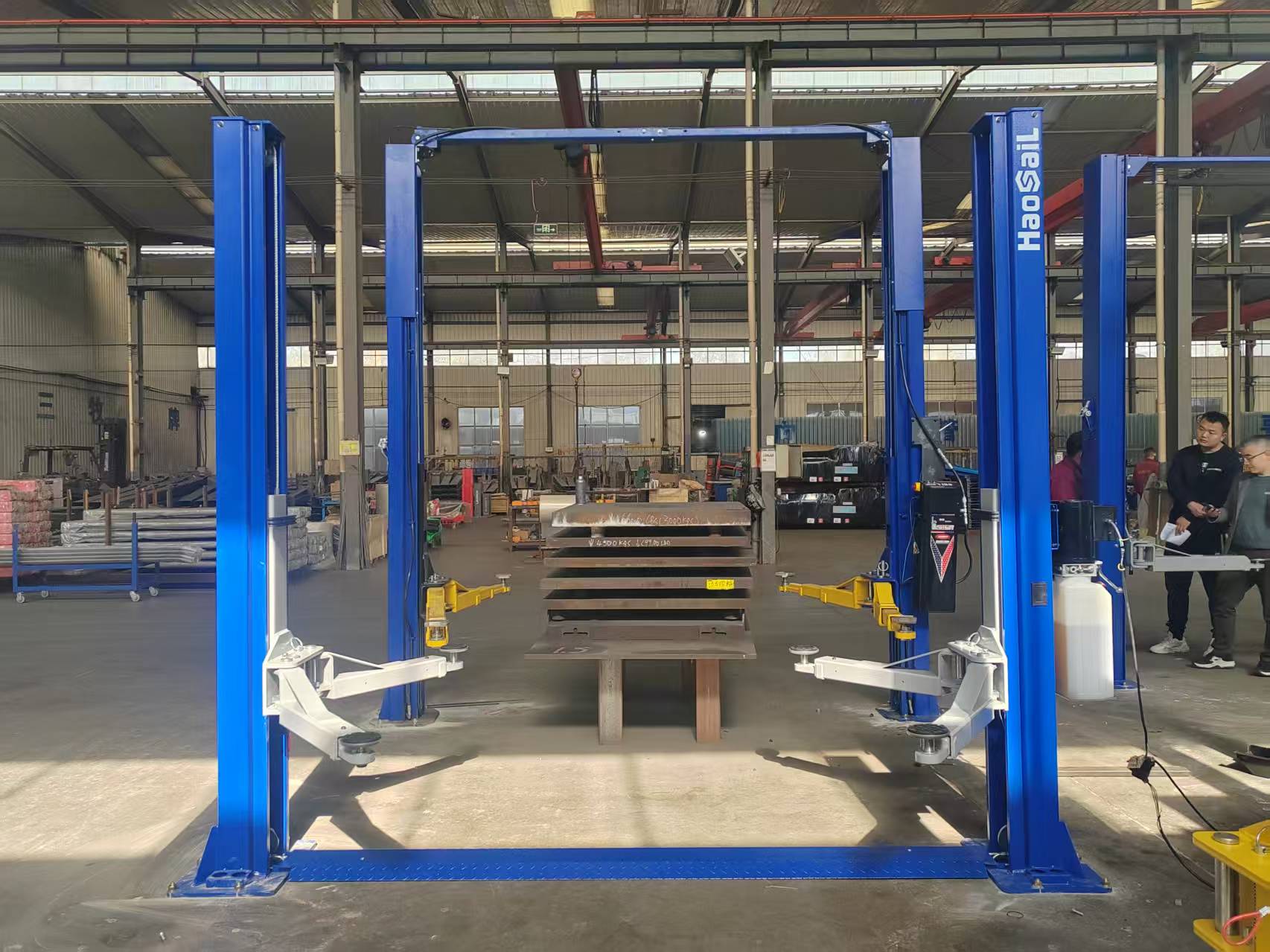

Two Post Car Lifter for Efficient Vehicle Maintenance

Description

Vehicle Lifting Equipment (Model HCL240AE)

Our vehicle lifting equipment is special equipment for the automotive maintenance industry. It lifts medium and small vehicles (total weight ≤ 8T) to a specified height through hydraulic drive, providing a safe working space for vehicle repair, maintenance, and inspection. The core drive mode of the equipment is hydraulic drive, which features stability, safety, and strong load-bearing capacity.

Applications
Vehicle repair and maintenance work
Vehicle inspection and diagnostic operations
Small and medium-sized vehicle lifting (total weight ≤ 8T)
Automotive workshop and garage daily operations

Product Advantages
Square tube structure of the arm trolley for higher strength and stability
Iron shell motor for high durability and long service life
Small base design saves installation space, suitable for compact workshops
Anti-pinch device on pallet ensures operation safety
Hydraulic drive system provides stable and smooth lifting operation

Key Configurations

Voltage: 220V/230V/240V/380V/400V/415V (50Hz)
Motor Power: 2.2kW
Lifting Load: 4T
Lifting Height: 1.9m (1900mm)
Lifting Time: 30-40s
Machine Weight: 610kg
Base Size: Small base 457×340mm
Unlocking Method: Bilateral manual unlocking
Expansion Bolt: M18×160mm
Heightening Sleeve Height: 100mm
Pallet: Metal-clad single-nut pallet with anti-pinch device
Configuration: Small baffle, Dongfang iron shell motor, plastic oil drum, square tube structure of arm trolley

Hot Tags: Two Post Car Lift, Two Post Lift, Garage Equipment, Auto Lift
